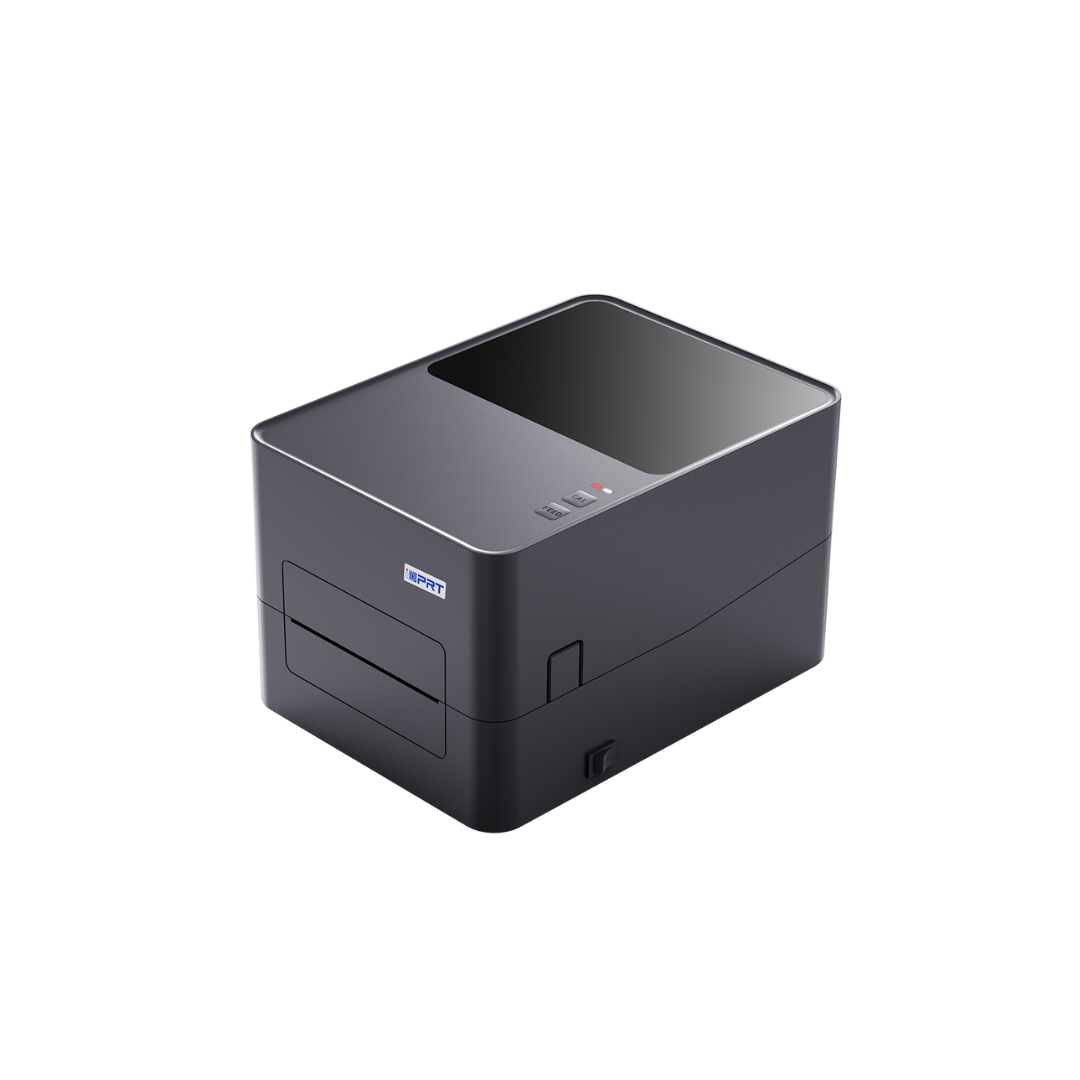

iF4 Standard Thermal Transfer Desktop Barcode Printer

Rated 0 out of 5

(0 Reviews) Write a review

PRINTER MODEL		iF4
Resolution		203dpi,300dpi
Printing method		Direct Thermal and Transfer Thermal
Max. print speed		6ips @ 203dpi, 4ips @ 300dpi
Max. print width		4.25″(108mm) @ 203dpi and 4.17″(106mm) @ 300dpi
Max. print length		90″(2,286mm) @ 203dpi, 60″(1,524mm) @ 300dpi
Physical dimension(W x H x D)		11.10″(282mm)x6.61″(168mm)x6.89″(175 mm)
Weight		4.22lbs (2.32kg)
Processor		32-bit RISC CPU
Memory		64MB RAM/ 128MB Flash
Interface		Standard: USB-B and Ethernet 10/100Base T Optional: Bluetooth 5.2/BLE(Factory option),Wi-Fi 802.11a/b/g/n/ac
Power		External universal switching power supply Input: AC 100~240V, 2.0A, 50~60 Hz Output: DC 24V 2A, 48W
User interface		2operation button( calibration,feed ) 2 LED with 3 colors
Sensors		Gap transmissive sensor Black mark reflective sensor (position adjustable) Head open sensor
Internal fonts		8 resident expandable ZPL II bitmap fonts Simplified Chinese, Traditional Chinese Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1251, 1252, 1253, 1254, 1255, 1256 Support with font 0
Graphic formats		PCX,BMP
Bar code		1D: Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, GS1 DataBar 2D: PDF417, Maxicode, DataMatrix, QR Code, Aztec
Font and barcode rotation		0, 90, 180, 270 degree
Printer Language		ZPL-II, TSPL, DPL
Media type		Continuous, die-cut, black mark, fan-fold, notch
Media handling		Standard: Continuous, Tear-Off
Media width		Min 1″(25.4mm) / Max 4.64″(118mm)
Media thickness		0.002″(0.06mm) to 0.010″(0.250mm)
Media core diameter		0.5″(12.7mm)/ 1″(25.4mm)
Media max. roll diameter		5.0″(127mm)
Media length		Min.: 0.24″(6mm) Max.: 51″(1296mm)
Ribbon type		Wax, Wax/Resin, Resi
Ribbon length		984.3 ft(300m)
Ribbon core diameter		0.5″(12.5mm),1″(25.4mm)
Ribbon width		Min 1.18″(30mm) / Max 4.33″(110mm)
Environment condition		Operating Temperature: 41° to 104°F (5° to 40°C) (limitations based on selected media) / Operating Humidity: 25 to 85% RH Non-Condensing Storage Temperature: -20° to 122° F (-20° to 50° C) / Storage Humidity: Non-Condensing
Safety Certification		CCC, FCC, CE, CB, Energy Star
Environmental concer		RoHS
Options		Bluetooth 5.2/LE(Factory option),Wi-Fi 802.11a/b/g/n/ac

In stock

Description

The iF4 desktop barcode printer is designed for businesses requiring reliable, high-speed label printing, supporting a 300-meter ribbon for extended use.

High-Speed Performance, Effortless Maintenance

Impressive printing speed of 152.4mm/s (6 inches per second) for efficient label production.

Mechanism structure designed for easy maintenance

Powered by a robust 1.1GHz 32-bit RISC processor, coupled with 64 MB SDRAM for superior performance.
Ample storage with 128 MB Flash memory, accommodating extensive label designs.

Flexible Connectivity, Seamless Integration

Standard USB and Ethernet interfaces, with optional Wi-Fi or Bluetooth for versatile connectivity options.
Compatible with various drivers including free Seagull Windows driver, Bartender, and HPRT drivers, facilitating effortless label design.
Supports multiple emulations: ZPL, EPL, DPL and TSPL for broad compatibility across different systems.

Versatile Accessories for Enhanced Functionality

A range of optional accessories available, including peeler, cutter, and external paper stand, to customize your printing experience.
